Mahsulot bilan tanishish
180 darajali pnevmatik aktuator tokchali va pinionli ikkita pistondan iborat. Ikkita model mavjud. Ulardan biri er-xotin ta'sirli, ikkinchisi-yopiq yoki ochiq havodagi har xil korroziyali muhitga moslasha oladigan bahor-qaytish turi.
Tez tafsilotlar
Mahsulot nomi: 180 darajali pnevmatik aktuator
Brend nomi: XM va OEM ham qabul qilinadi
Aktivatorning o'lchami: 32mm-400mm
Burilish burchagi: 0 ° ~ 180 ° (± 5 °)
Ishlash harorati oralig'i: -20 ℃ ~ +80 ℃ (standart)
-40 ℃ ~ +80 ℃ (past harorat)
-15 ℃ ~ 150 ℃ (yuqori harorat)
Havo bosimi: 0,2 ~ 0,8MPa, maksimal 10Mpa
Yuqori ulanish: VDI/VDE3845 NAMUR
Pastki ulanish: ISO 5211 va DIN3337
Material: alyuminiy qotishmasi
Tuzilishi: tokchali va pinionli, ikkita raftli pistonli
Aktuator korpusining sirtini qayta ishlash: qattiq anodlangan yoki oksidlanish
Qopqoqning rangi: qora kulrang, qora, quyuq ko'k, osmon ko'k, qizil, to'q sariq, yashil va boshqalar.
Sertifikatlash: Idoralar, ATEX, SIL3, ISO9001: 2016
Texnik parametr
XM 180 darajali pnevmatik aktyor chiqish torkli stol
Model | Kirish havo bosimi (birlik: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Havo bosimi chiqish momenti (Nm) | ||||||
XM-DA32-180 ° | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40-180 ° | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52-180 ° | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63-180 ° | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75-180 ° | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83-180 ° | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92-180 ° | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105-180 ° | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125-180 ° | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140-180 ° | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160-180 ° | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190-180 ° | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210-180 ° | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240-180 ° | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270-180 ° | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300-180 ° | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350-180 ° | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400-180 ° | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |

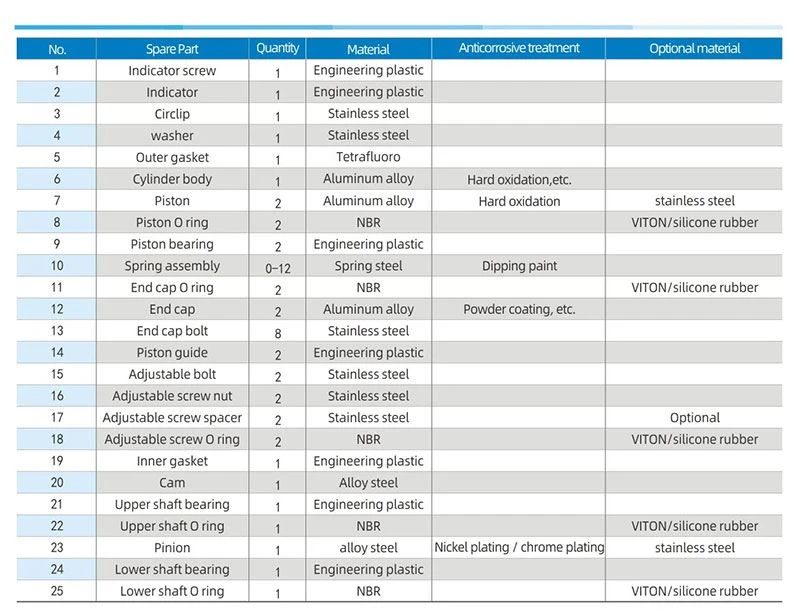

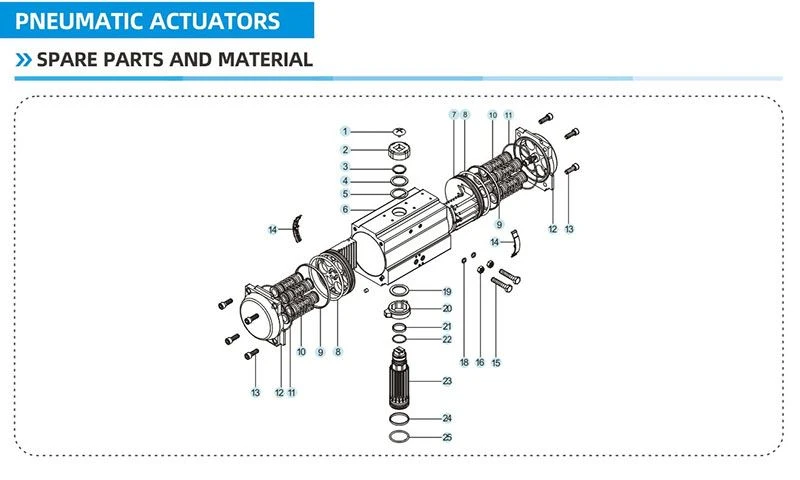

Ehtiyot qismlar va materiallar

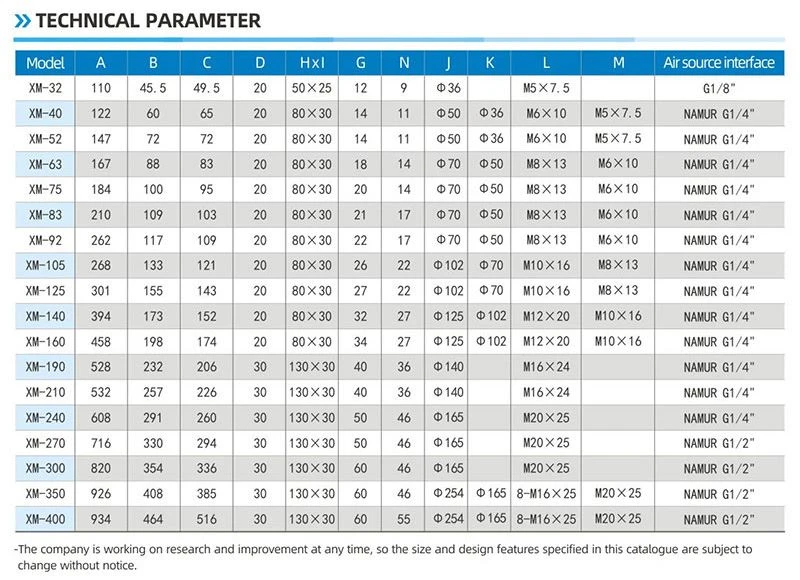

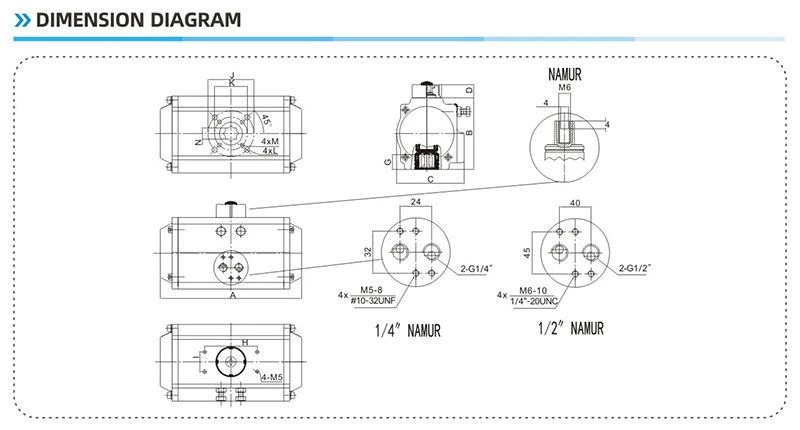

O'lchov diagrammasi
Tss
1 -savol: To'lov shartlari hajmi?
A 1: T/T, L/C, Western Union.
2 -savol: Savdo shartlari?
A 2: Incoterms 2010 ga ko'ra, odatda EXW, FOB shanxay, CFR, CIF va DDU bilan.
3 -savol: Kotirovkaning haqiqiyligi?
A 3: 30 kun ichida.
4 -savol: Yuk tashish usullari?
A 4: dengiz, havo, ekspress yoki temir yo'l orqali.
5 -savol: Kafolatmi?
A 5: Bir yillik sifat kafolati bepul va umr bo'yi pullik xizmat.
6 -savol: O'rnatish va o'qitish?
A 6: o'rnatish uchun oddiy video ko'rsatma. Agar kerak bo'lsa, chet elda pullik muhandislik xizmati ko'rsatiladi.
