Mahsulot taqdimoti

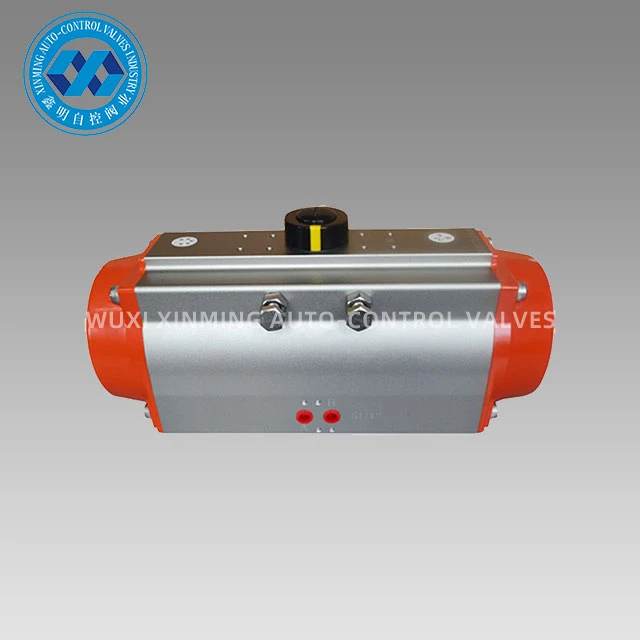

Qattiq anodizatsiya qiluvchi pnevmatik aktuator aniq tishli uzatma va barqaror chiqish momentiga ega ixcham ikki porshenli raf va pinion tuzilishga ega; silindr tanasi ekstrude alyuminiy qotishmasidan qilingan, anodlangan, qattiq sirt va kuchli aşınma qarshilik bilan; kerak bo'lganda o'rnatilishi mumkin. Valf, echo qurilmasi, joylashtiruvchi (ochilish ko'rsatkichi), uchlik va qo'lda ishlaydigan mexanizm. Mos keladigan ball valfi, kelebek klapan va boshqa burchakli zarba klapanlari.
Dizayn xususiyatlari
1. Vana tanasi va piston qattiq anodlangan.
2. Ko'rsatkich vinti plastik bo'lmasa, boshqa barcha vintlar SS304.
3. Katta va kichik chiqish momentlari ixtiyoriy.
Texnik parametr
XM ALyuminiy pnevmatik aktuatorning chiqish momenti jadvali
Model | Kirish havo bosimi (birlik: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Havo bosimining chiqish momenti (Nm) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
Ehtiyot qismlar va materiallar
O'lchov diagrammasi
