Mahsulot taqdimoti

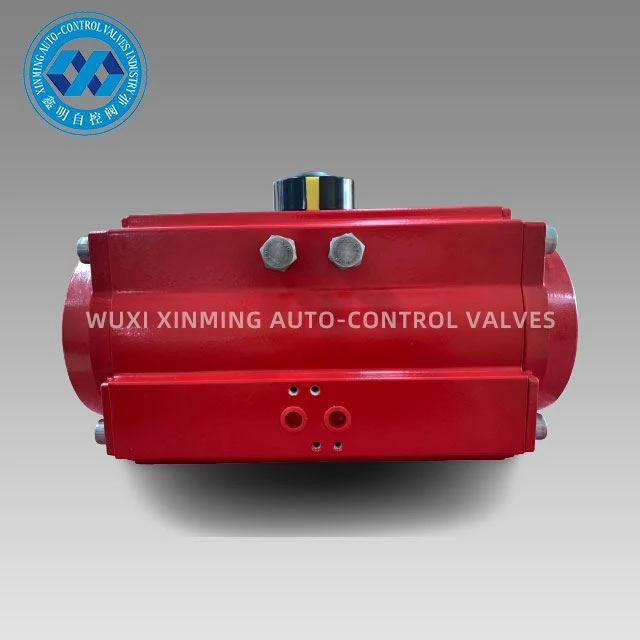

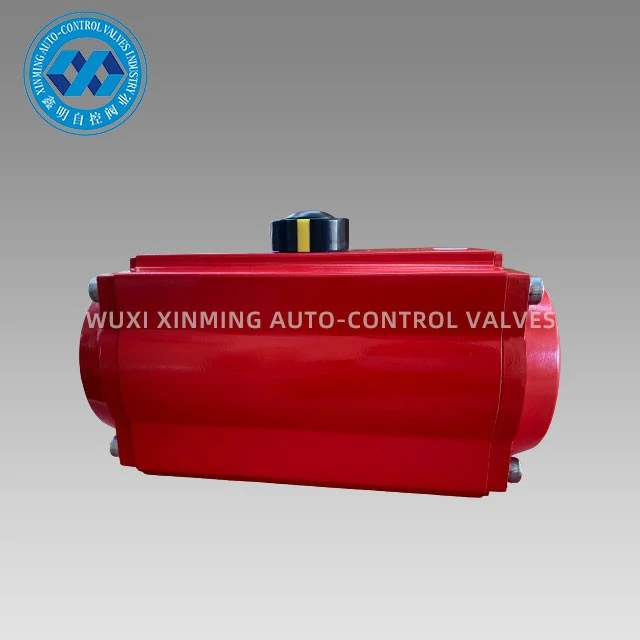

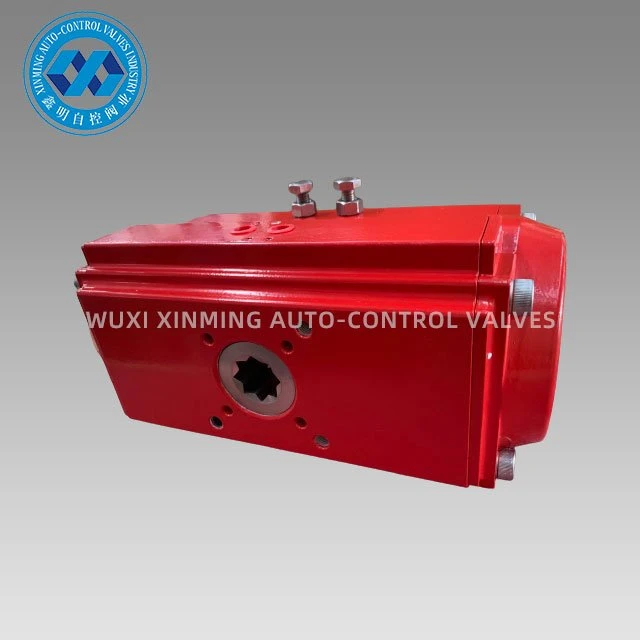

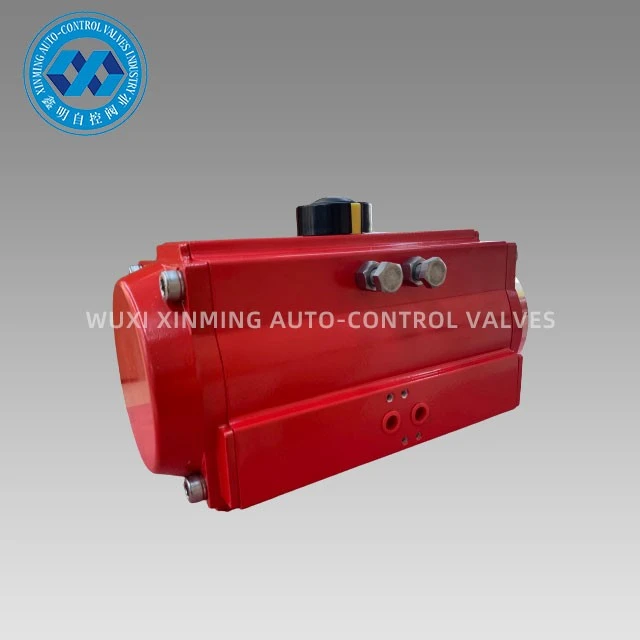

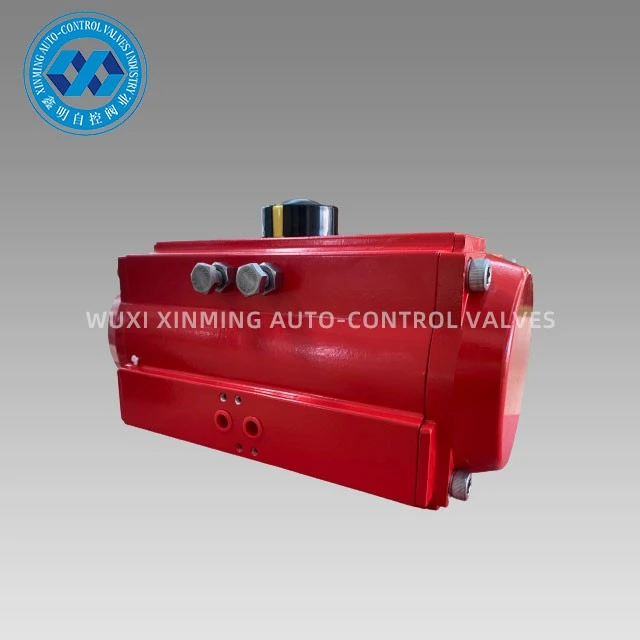

Avtomatlashtirilgan yoqish-o'chirish vana aktuatori balli klapanlarni, kelebek klapanlarni va aylanadigan mexanizmlarni avtomatik ravishda tartibga solish uchun ishlatiladi. Aniq quyma alyuminiy qotishmasidan tayyorlangan ikki qavatli pistonlarda qattiq oksidlanish bilan ishlov berish xizmat muddatini va aylanish burchagi aniqligini yaxshilaydi. Avtomatlashtirilgan yoqish-o'chirish valfi aktuatori korpusining qattiq oksidlanishi tirnalishlarni samarali ravishda oldini oladi.
Tez tafsilotlar
Mahsulot nomi: Avtomatlashtirilgan yoqish-o'chirish vana aktuatori
Tovar nomi: XM va OEM ham qabul qilinadi
Aktuator hajmi: 32mm-400mm
Burilish burchagi: 0 daraja ~90 daraja (±5 daraja)
Ishlash harorati diapazoni: -20 daraja ~ plus 80 daraja (standart)
-40 daraja ~ plyus 80 daraja (past harorat)
-15 daraja ~150 daraja (yuqori harorat)
Havo ta'minoti bosimi: {0}}.2~0,8MPa, maksimal 10Mpa
Yuqori ulanish: VDI/VDE3845 NAMUR
Pastki ulanish: ISO 5211 va DIN3337
Material: alyuminiy qotishmasi
Tuzilishi: rack va pinion, ikki rafli pistonlar
Aktuator korpusining sirtini tozalash: qattiq anodlangan yoki chuqur oksidlanish
Sertifikatlash: Idoralar, ATEX, SIL3, ISO9001: 2016
Texnik parametr
XM ON-O'CHIRISH PNEVMATIK AKTUATTORNI CHIKARISH MOVNI JADVALI
Model | Kirish havo bosimi (birlik: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Havo bosimining chiqish momenti (Nm) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
O'lchov diagrammasi
